Mechanical Seal roten7k Suit for ROTOR PUMP Tungsten Carbide/Stainless Steel TC Inserted in SS304

contacto

Mechanical Seal roten7k Suit for ROTOR PUMP Tungsten Carbide/Stainless Steel TC Inserted in SS304

Quantidade de ordem mínima :	5pc	Preço :	Negotiated
Detalhes da embalagem :	caixa como requisito	Tempo de entrega :	20-30 DIAS
Termos de pagamento :	T/T, Western Union, L/C	Habilidade da fonte :	100.000 unidades/mês

Lugar de origem:	Feito na china	Marca:	JR
Certificação:	ISO9001	Número do modelo:	Tipo 7k

Informação detalhada
Material:	CARRO CER NBR DE SIC SIC FKM	Função:	para bomba de óleo, bomba de água
Pacote de Transporte:	Caixa	Código Hs:	848420090
Especificação:	Rotem 7k	Certificado:	ISO9001
Tipo:	Para a bomba de podridão 7k	Padrão:	Padrão
Estilo:	Selo mecânico	Nome do produto:	Selo Latty T510 Roplan de Flowserve 168 do selo de Aesseal W01 do selo de John Crane 80 (DF/FP) 800/

Descrição de produto

Mechanical Seal Wave Spring Mechanical Shaft Seal Roten 7k For Water Pump For John Crane 80 (DF FP) Seal

Operational Conditions:

Repalcement of AES W01 John crane 80(DF/FP) Flowserve 168 Roplan 800 Roten 7K Sterling 280 Vulcan 1688
7K seal used for Johnson pumps and Inoxpa pumps etc. lobe food pumps
Temperature: -20ºC to +180ºC
Pressure: ≤2.5MPa
Speed: ≤15m/s

Materials:

Stationary Ring: Ceramic, Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, FKM, PTFE
Spring and Metal Parts: Steel
3. Seat Type:
4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Performance Capabilities

Temperature	-40℃ to 200℃, dependent on the elastomer
Pressure	Up to 12bar
Speed	Up to 18 m/s
End play/axial float allowance	±0.1mm
Size	10mm-100mm
Brand	JR
Face	Carbon, SiC, TC
Seat	Carbon, SiC, TC
Elastomer	NBR, EPDM, FKM etc.
Spring	SS304, SS316
Metal parts	SS304, SS316
Idividual Packing	Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

1. it is equivalent to
Roten 7K/Uniten 7K mechanical seal
John Crane 80 (DF/ FP) seal
Aesseal W01 seal
Flowserve 168 seal
Latty T510
Roplan 800/ 850 seal
Sterling 280 seal
2.Our seals can replace the original seals.
3.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.
4.Customized products and OEM is welcomed

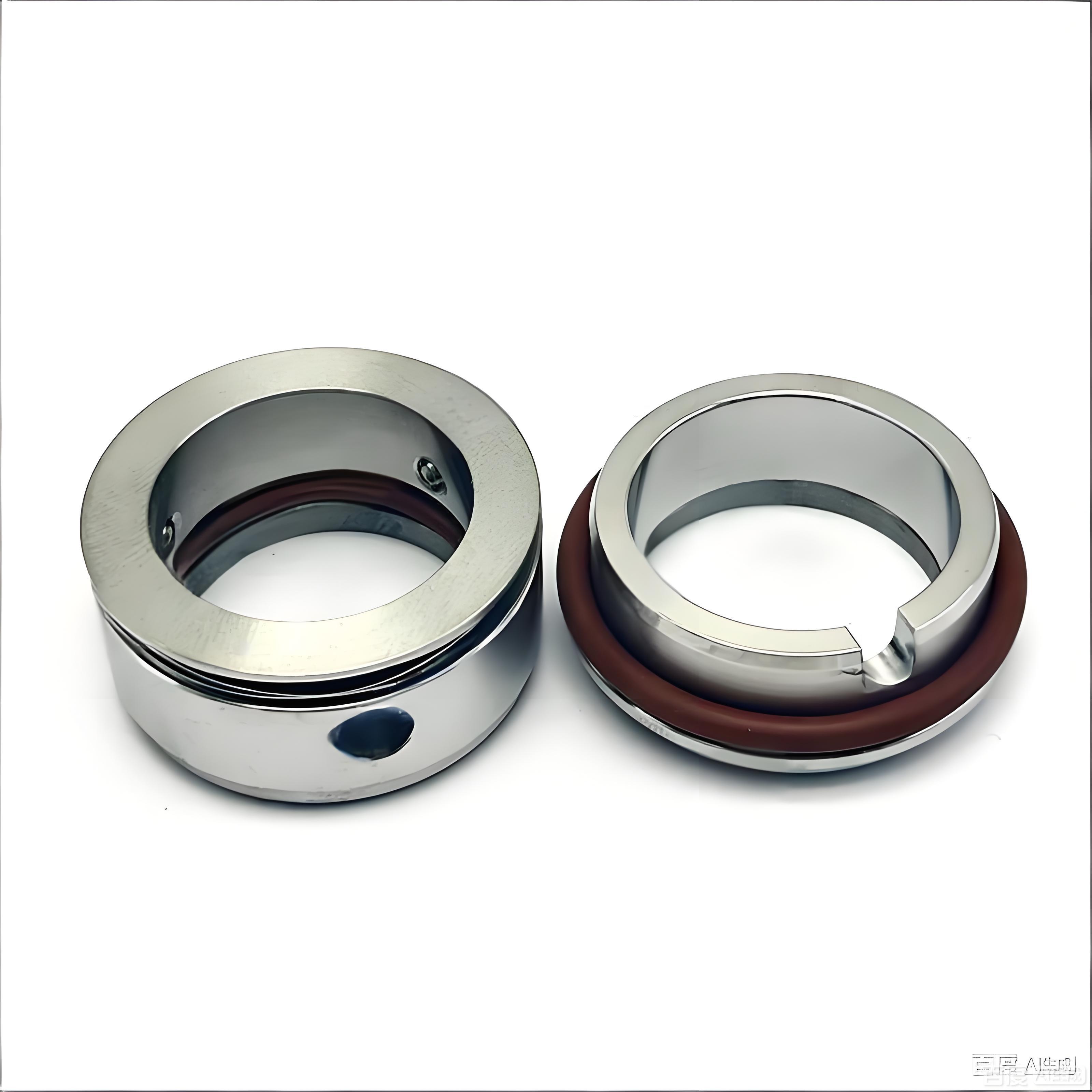

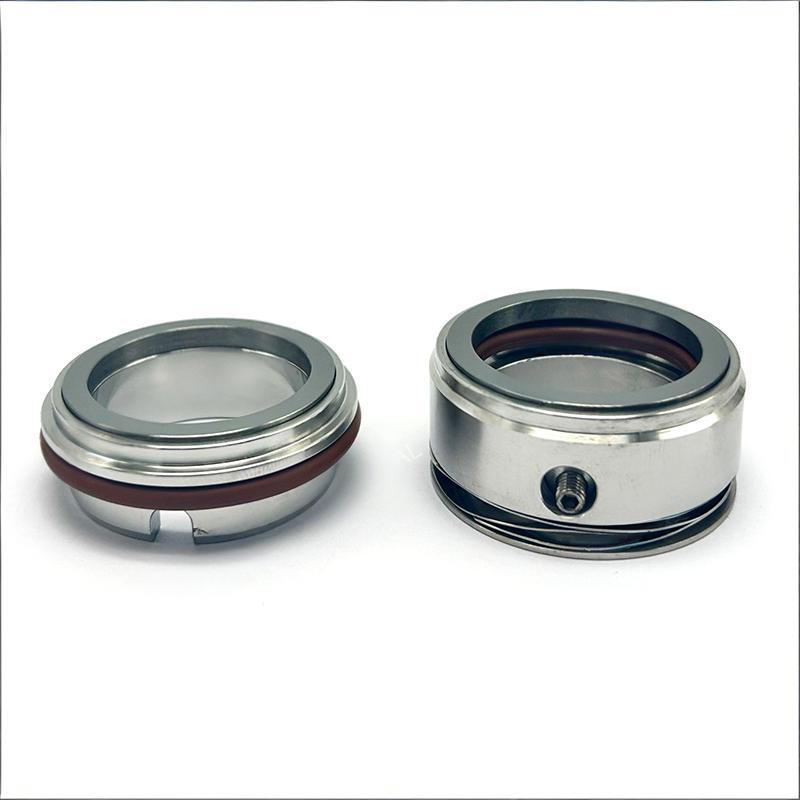

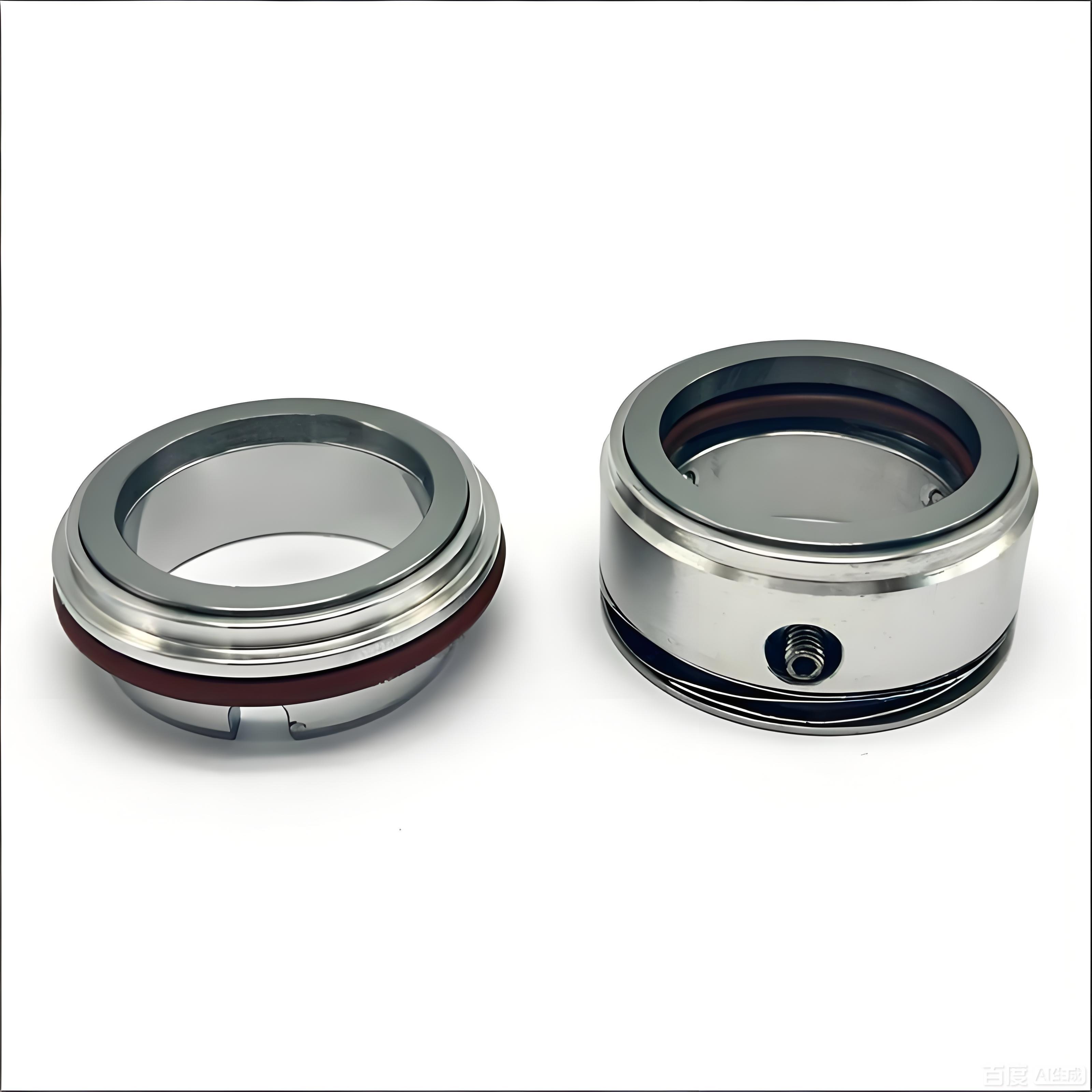

Mechanical Seal roten7k Suit for ROTOR PUMP Tungsten Carbide/Stainless Steel TC Inserted in SS304 0

Mechanical Seal roten7k Suit for ROTOR PUMP Tungsten Carbide/Stainless Steel TC Inserted in SS304 1

Mechanical Seal roten7k Suit for ROTOR PUMP Tungsten Carbide/Stainless Steel TC Inserted in SS304 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
